2Д радни сто покретни сто по КСИ оси 300 * 200 * 90 мм за машину за ласерско обележавање влакана

5 0 Reviews
X Y axis adjustable worktable can achieve very small position movement of work-piece via adjust the worktable. So if the work piece's position need very small movement, we no need to move the work-piece, just to adjust the worktable by X and Y axis's handle
Статус доступности:
Количина:
  • 300 * 200 * 90мм

  • RAY FINE TECH

2D Worktable X Y Axis Moving Table 300*200*90mm for Fiber Laser Marking Machine




Material :alumimum

Outside size:lenght :300mm width:220mm   heigth:90mm

Hole distance is 50mm,

Use M6 screws

X axis direction maxmum can move 0-74mm

Y axis direction can move 0-43mm

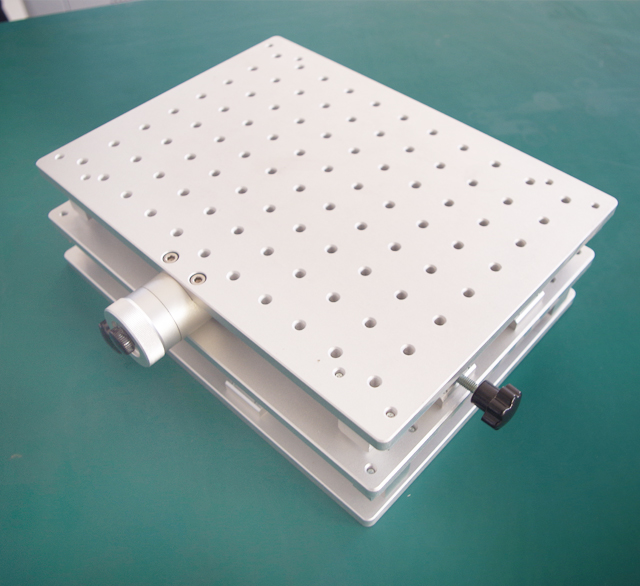

 具体尺寸 640x640 2

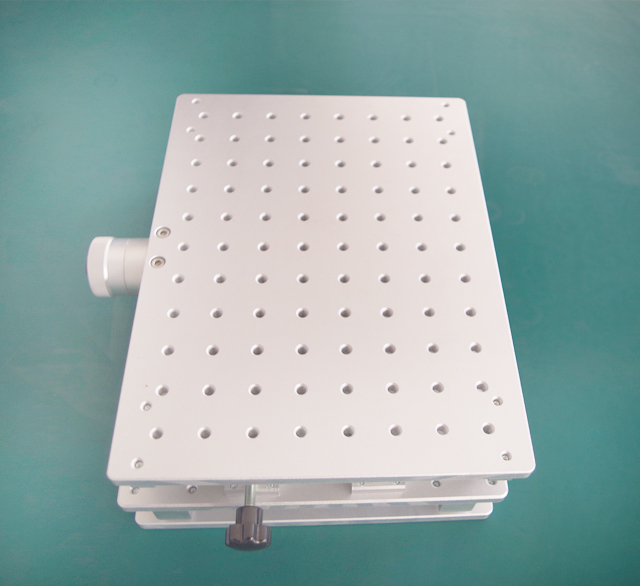

具体尺寸 640x640 3

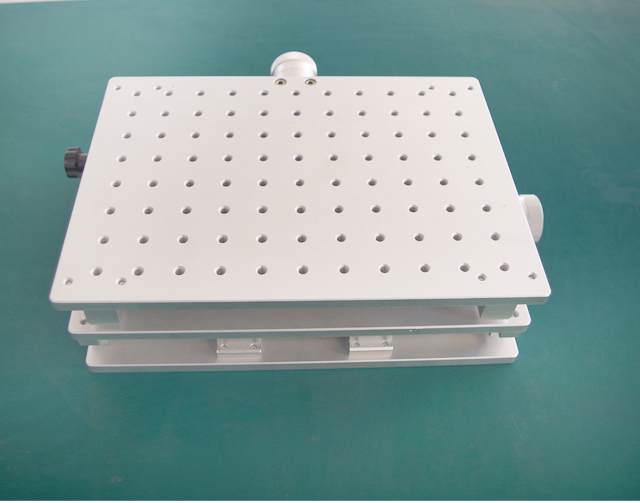

具体尺寸 640x640 4

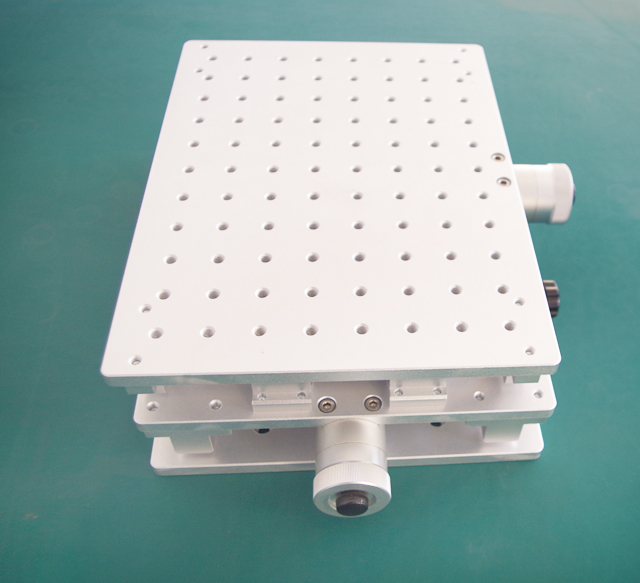

具体尺寸 640x640 5


Function:

X Y axis adjustable worktable can achieve very small position movement of work-piece via adjust the worktable.
 So if the work piece's position need very small movement, we no need to move the work-piece, just to adjust the worktable by X and Y axis's handle
